TR545D Copper Tire Valve Stem | 60° Clamp-In | Pack of 10

Keep Your Tires Properly Inflated. Every Mile.

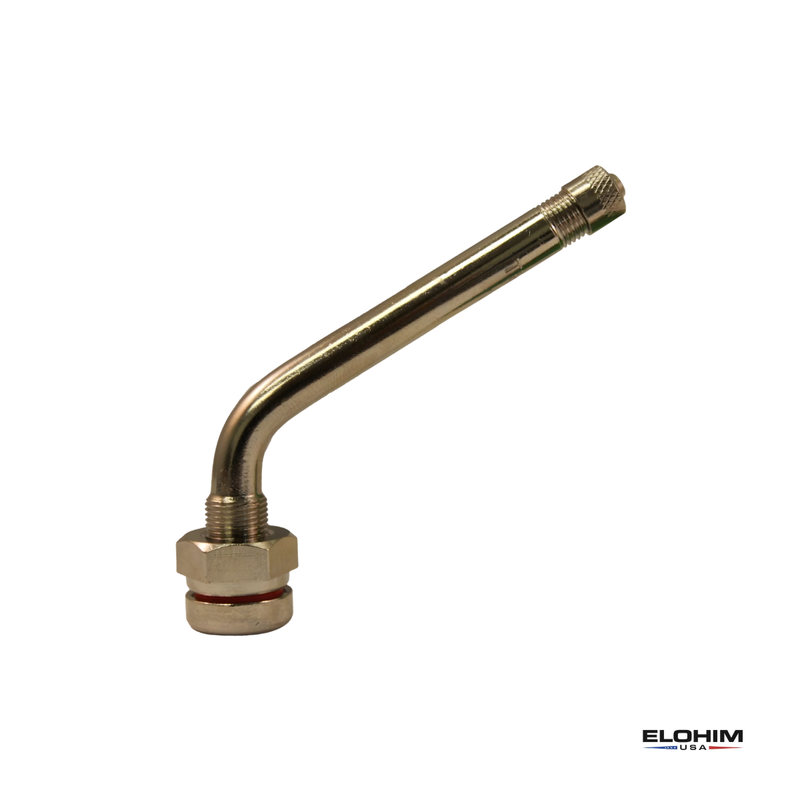

The Elohim USA TR545D Copper Tire Valve Stem is the heavy-duty replacement valve stem for commercial semi trucks and buses running on Alcoa aluminum wheels. The copper construction offers superior heat resistance and durability compared to standard aluminum stems — making it the preferred choice for drivers and fleet mechanics who demand maximum performance under extreme conditions.

The 60-degree bend design provides easy access for inflation and pressure checks on 22.5" and 24.5" aluminum wheels. Features an ozone-resistant Viton O-ring seal for a leak-proof, airtight connection rated up to 200 PSI.

KEY FEATURES:
- Heavy-duty copper construction for superior heat resistance
- 60-degree bend for easy tire inflation and pressure checking
- Viton O-ring seal for leak-proof, airtight performance
- Clamp-in design fits standard 9.7mm rim holes
- Compatible with Alcoa 22.5" and 24.5" aluminum wheels
- Max air pressure: 200 PSI
- Direct OE replacement — part number TR545D
- Pack of 10 units

SPECIFICATIONS:
- Part Number: TR545D
- Material: Copper
- Bend Angle: 60 degrees
- Effective Length: 2.6" (66mm)
- Bottom OD: 0.63" (16mm)
- Rim Hole Diameter: 9.7mm
- Max Air Pressure: 200 PSI
- O-Ring: Viton (ozone resistant)
- Quantity: 10 units per pack

Compatible with: Alcoa aluminum wheels 22.5" and 24.5" — tubeless semi trucks and buses.

Trusted by truck drivers, carriers, and fleet operators across Houston, Texas and the USA. Keep your tires sealed and your rig rolling with Elohim USA.
