A stack of steel pipe shifts during a hard brake and rolls forward. Without anything to stop it, 8,000 lbs of pipe is heading for the cab — and the driver. This isn't a theoretical scenario. It's the reason pipe stakes exist, the reason experienced flatbed drivers carry them, and the reason some shippers won't release a load without them already in the pockets. Pipe stakes are one of the simplest, cheapest pieces of hardware on a flatbed, and one of the most important.
What a Pipe Stake Is

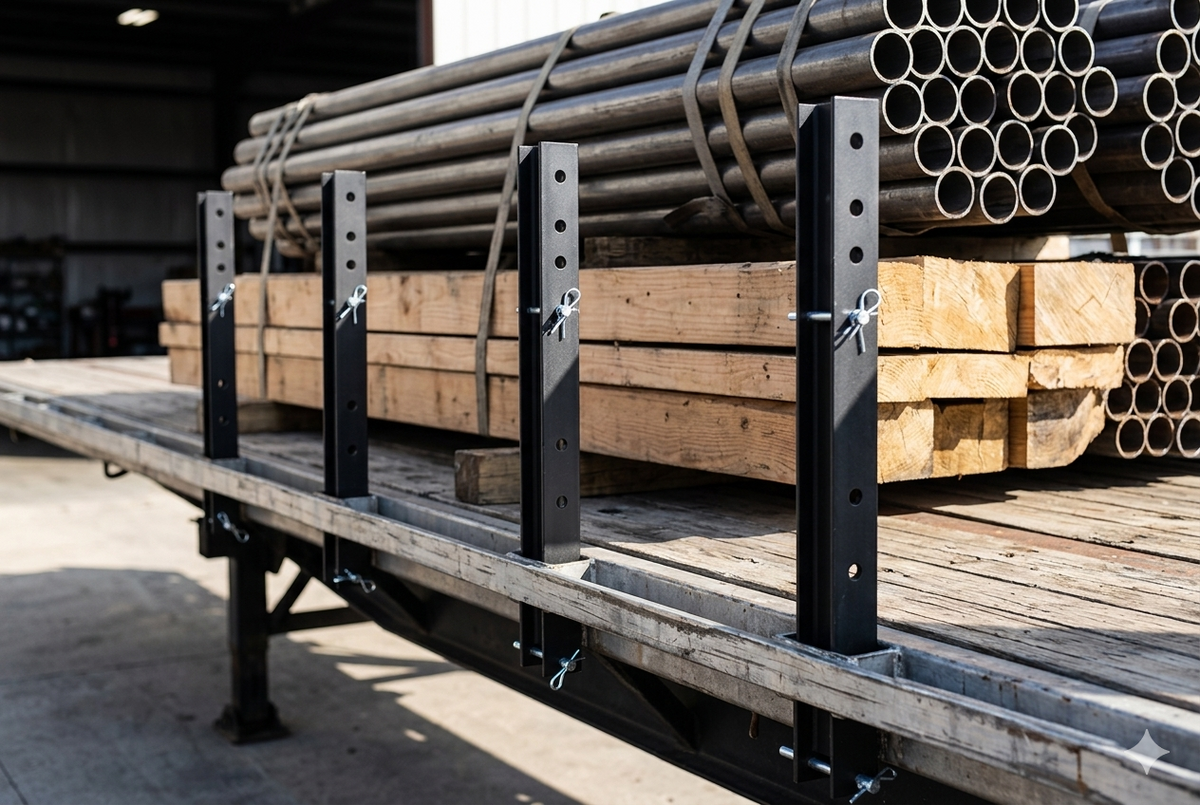

A pipe stake is a vertical steel post that drops into the stake pocket on the side of a flatbed trailer. Once inserted, it acts as a side wall — a physical barrier that prevents cargo from rolling or sliding off the edge of the deck.
Unlike straps and chains, which hold cargo down and prevent vertical movement, pipe stakes address the lateral problem: loads that want to roll sideways. Used together with proper tie-downs, they create a complete securement system for loads that staps alone cannot contain.
Standard length is 54 inches above the deck, but stakes are available in multiple heights depending on the load profile. The post itself is steel — heavy enough to stop a roll, light enough to carry without equipment.
When You Need Pipe Stakes
Any load that can roll or shift laterally benefits from pipe stakes. Specifically:
- Round steel pipe and tubing: The primary use case. Pipe bundles under strap tension have almost no resistance to rolling off the side of the deck if the straps fail or loosen.
- Lumber bundles: Stacked lumber can shift sideways even when properly strapped. Pipe stakes contain the bundle laterally and prevent the classic "accordion shift" on turns.
- Steel rods and rebar: Same physics as pipe — round, dense, and mobile under vibration.
- Concrete pipe: Heavy, round, and a total loss if it goes off the deck. Requires chain securement under FMCSA rules and pipe stakes for side containment.
- Any cylindrical or irregularly stacked load where lateral movement is a realistic risk at highway speed.
Some shippers specify pipe stakes as a delivery requirement. Others leave it to the driver's judgment. When in doubt, use them.
Standard Specs
The most common pipe stake configuration used across U.S. flatbed operations:
- Height: 54 inches above the deck surface (standard)
- Steel gauge: 8-gauge (heavy-duty wall thickness)
- Weight: Approximately 14–15 lbs per stake
- Mounting holes: 7 holes along the lower section for height adjustment and bolting
- Base design: Fits standard 2"×4" or 4"×4" stake pockets found on most North American flatbed trailers
Shorter stakes (30", 36") are available for low-profile loads. Taller stakes (72"+) exist for oversized or stacked loads that require higher side containment.
How to Install
Installation is straightforward — there's a reason drivers call them "drop-in" stakes:
- Locate the stake pockets along the side rail of your flatbed. Most standard 48-foot flatbeds have 8–10 pockets per side.
- Drop the stake into the pocket, base first. It should seat fully with the lower section inside the pocket and the stake standing vertical.
- Adjust height if your stakes have an adjustable base. Use the mounting holes to pin or bolt the stake at the correct height for your load.
- For permanent installation on dedicated trailers, bolt-in stakes provide maximum stability. For general-use trailers where stakes need to be removed and stowed between loads, removable stakes are the standard choice.
Check that the stake is seated fully and vertical before loading cargo against it. A half-seated stake will fail under lateral load.
Safety — What Stakes Can and Cannot Do
This section matters. Pipe stakes are a containment tool, not a tie-down replacement:
- Stakes are side restraints only. They prevent lateral roll and shift. They do not secure the load against forward, rearward, or vertical movement.
- Cargo must still be tied down. Straps or chains over the load are always required in addition to stakes. A load resting against pipe stakes with no tie-downs is not compliant and is not secure.
- Stakes are not rated for full load bearing. They're designed to stop a rolling load, not to hold a statically loaded cargo in place against braking force.
- Inspect every load. Check stakes for cracks, bends, or deformation at the base. A bent stake has reduced lateral strength — replace it before loading.
Buying Tips
- How many to buy: For most standard flatbed setups, 4–6 stakes covers the majority of loads. One stake per occupied stake pocket along each side is the working formula.
- Buy in bulk: Stakes are consumable — they bend, they get left at yards, they get swapped between trailers. A 4-pack or 10-pack brings the per-unit cost down significantly compared to singles.
- Match gauge to load weight: Standard 8-gauge works for most freight. Very heavy loads (structural steel, large concrete pipe) may warrant a heavier wall thickness.
- Galvanized or powder-coated finish: Worth the small premium. Bare steel stakes rust quickly in outdoor storage and humid conditions, which weakens the base over time.
Trailer Compatibility
- Standard flatbed trailers (48' and 53'): Compatible with standard 2"×4" drop-in pipe stakes.
- Drop-deck and step-deck trailers: Check pocket dimensions before ordering. Some decks use non-standard pocket sizes.
- Lowboy trailers: Usually have different pocket systems — verify with your trailer manufacturer.
- Custom-built trailers: Measure your pocket interior dimensions before ordering. Width and depth vary between manufacturers.
