A ratchet strap costs $20. Replacing it every other month because it keeps fraying adds up fast. Corner protectors cost $2–5 each and triple the life of every strap on your trailer. That math isn't complicated — but a lot of drivers still skip them.
Why You Need Corner Protectors
When you crank down a ratchet strap or winch strap over a hard edge, the webbing gets pressed into that edge under hundreds of pounds of tension. Sharp corners on steel, machinery, or even wood pallets act like a blade — slowly cutting through the fibers with every bump in the road.
Once the fibers are nicked, the strap no longer holds its rated working load limit. It's compromised — even if it still looks okay to the eye. Here's what that means in practice:
- DOT inspectors check for frayed and damaged straps. A visibly nicked or frayed strap is an automatic out-of-service violation.
- Damaged straps fail under load. Not necessarily at a weigh station — usually on the highway at 70 mph.
- Carriers pay the cost. Fines, lost cargo, liability claims — all of it traces back to skipping a $3 piece of cardboard or plastic.
Corner protectors are not optional. They are part of a compliant, professional load securement setup.

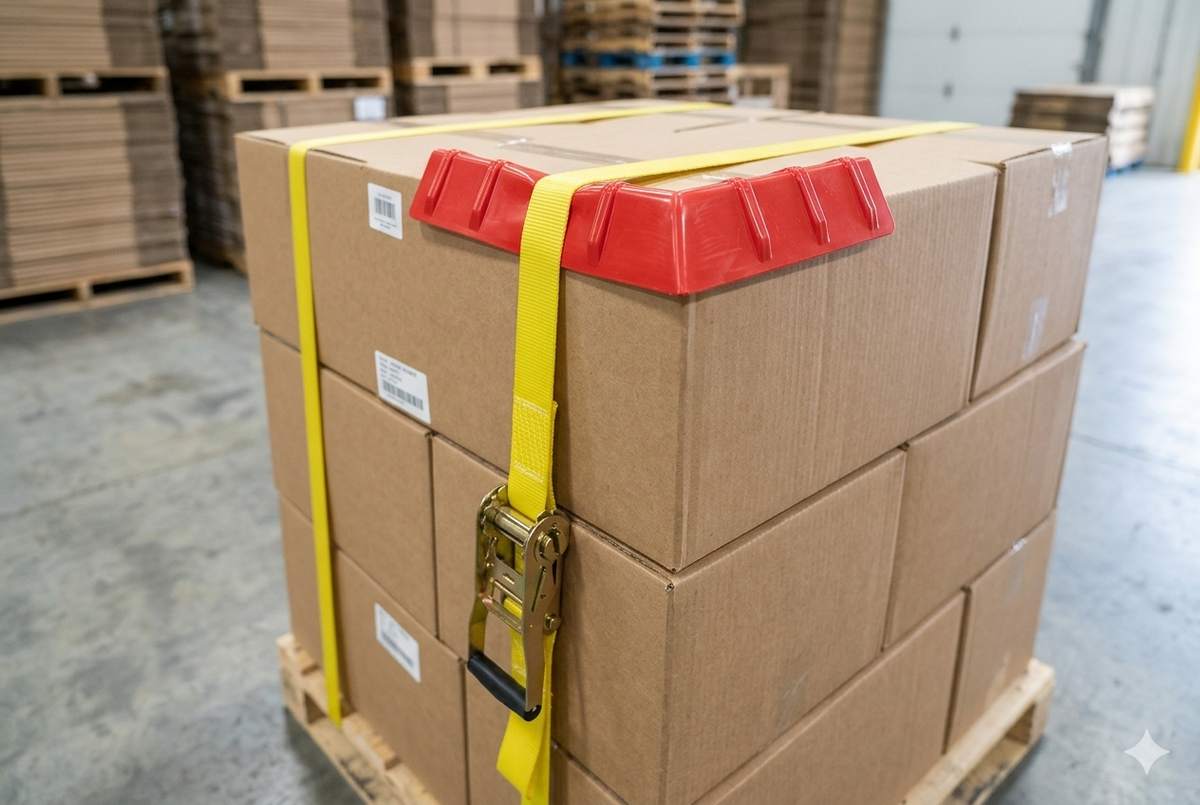

Plastic Corner Protectors
Plastic corner protectors are the most common choice for general freight. They're lightweight, reusable, and inexpensive enough to keep a stockpile on the truck.
- Best for: Cardboard boxes, palletized loads, light steel, lumber
- Reusable: Yes — until cracked or warped
- Cost: $1–3 per piece
- Limitation: Under extreme friction or summer heat, plastic can soften and deform. Not ideal for heavy steel or pipe under high strap tension.
For everyday general freight, plastic corner protectors are the right call. Keep a dozen in the truck box.
V-Board Corner Protectors
V-boards are heavy-duty cardboard folded into a V-shape that wraps around a cargo edge. They're disposable but tough — and they come in bulk packs that bring the per-unit cost down to almost nothing.
- Best for: Machinery, dense palletized loads, steel coils, heavy equipment
- Reusable: No — single use, then dispose
- Available in: 20-pack, 50-pack, 300-pack
- Cost: $0.50–2 per piece in bulk
- Key advantage: The V-shape distributes strap pressure across the full edge of the load rather than concentrating it on a single line
If you're pulling freight that could damage plastic protectors — or if your load requires single-use disposables for customer delivery — V-boards are the professional standard.
Steel Corner Protectors
Steel corner protectors are the heavy-duty solution for drivers running pipe, steel beams, coils, or any cargo with aggressive edges that would chew through plastic or cardboard.
- Best for: Steel pipe, I-beams, coils, rebar, heavy machinery with sharp metal edges
- Reusable: Yes — virtually indefinitely unless bent
- Cost: Higher upfront, but never need replacing
- Key advantage: Won't compress, melt, or deform under any load condition
Steel corner protectors are a one-time investment that pays for itself after the first few runs. If you're hauling steel regularly, there's no other option that makes sense.
What Size You Need
Sizing matters. An undersized protector doesn't cover the full width of the strap — which defeats the purpose entirely.
- 2-inch straps: Use 4-inch wide corner protectors minimum
- 4-inch straps: Use 8-inch wide corner protectors
- V-boards for palletized cargo: Match the board length to the edge being protected — 24", 36", and 48" lengths cover full pallet edges
When in doubt, size up. A corner protector that's slightly too wide does the job. One that's too narrow is worse than nothing — it gives the strap a false contact point and still lets the edge bite into the webbing on the sides.
When to Replace Them
- Plastic: Replace when cracked, bent, or deeply grooved. A cracked protector can split under load and let the strap drop directly onto the cargo edge.
- V-board: Single use only. After one run, the fibers are compressed and the structural integrity is gone — trash it.
- Steel: Replace only if visibly bent or deformed. A straight steel corner protector essentially never wears out.
Make it a habit: check your corner protectors every time you check your straps. It takes five seconds and it's part of a professional pre-trip inspection.
