If you're outfitting an enclosed trailer or moving truck, you'll hit a fork in the road: E-Track or X-Track. The names sound similar, the hardware looks similar, and most people selling it won't explain the difference clearly. But the choice matters — the wrong system means incompatible fittings, limited accessories, and potentially tearing out hardware later when the setup doesn't work for your load.
What E-Track Is

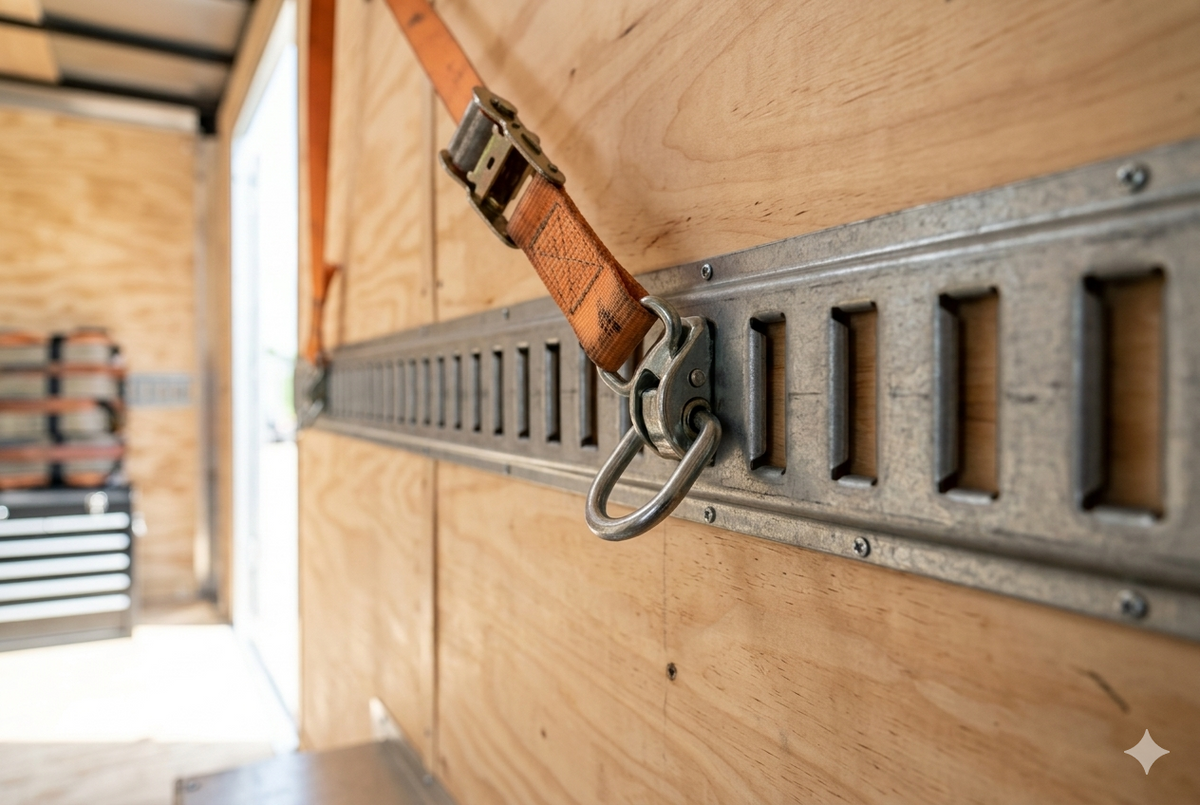

E-Track is a slotted steel rail system — the industry standard for enclosed trailers, dry vans, box trucks, and moving vehicles. The rails mount horizontally or vertically along the walls or floor, and a wide range of fittings click into the slots to create anchor points wherever you need them.
- Working load limit: 4,400 lbs per fitting (standard)
- Rail material: Steel, typically galvanized or powder-coated
- Compatible accessories: Tie-down rings, E-Track strap fittings, beam sockets, shoring beams, pallet boards, ratchet strap hooks, single-stud and double-stud fittings
- Availability: E-Track fittings are sold everywhere — truck stops, supply houses, online. Replacement parts are never a problem.
E-Track's biggest advantage isn't its load rating — it's the accessory ecosystem. Hundreds of fitting types exist for E-Track, giving you total flexibility in how you secure different cargo types.
What X-Track Is
X-Track uses a similar slotted rail design but with a heavier-duty slot profile — the slots are deeper and the rail walls are thicker, designed for commercial moving trucks and box vans where loads shift constantly and abuse is daily.
- Working load limit: 5,000+ lbs per fitting
- Rail material: Heavier-gauge steel, often used in OEM truck builds
- Compatible accessories: X-Track-specific fittings — not interchangeable with E-Track
- Availability: More limited than E-Track — fewer aftermarket options, fewer suppliers
X-Track is the commercial-grade choice for operations that need higher load ratings and don't rely on mixing and matching accessories from multiple suppliers.
Key Differences
- Fitting compatibility: E-Track and X-Track fittings are not interchangeable. An E-Track strap fitting will not lock properly into an X-Track rail, and vice versa.
- Load rating: X-Track runs slightly higher per fitting (~5,000 lbs vs 4,400 lbs for E-Track), but for most operations the difference is irrelevant.
- Accessory variety: E-Track wins by a large margin. Shoring beams, beam sockets, cargo bars, straps with molded fittings — nearly all of them are built for E-Track.
- Cost per linear foot: Comparable, but E-Track is more widely available and often cheaper due to higher production volume.
- Replacement parts: E-Track fittings are stocked at virtually every truck supply store. X-Track parts often require ordering specifically.
- Installation: Both systems use similar mounting hardware — bolt through the rail into structural framing. Neither should ever be mounted into sheet metal alone.
Which System Fits Your Operation
Here's a straightforward breakdown:
- Box truck for general freight: E-Track. The accessory variety alone makes it the right call — you'll be able to buy fittings at any truck stop anywhere in the country.
- Commercial moving truck or fleet vehicle: X-Track, if the vehicle came with it from the factory or if your operation spec's it. The higher load rating and heavier construction holds up to daily punishing use.
- Custom trailer build: E-Track unless your specific load demands the higher working load of X-Track. Most enclosed trailer builds use E-Track because the fitting ecosystem is unmatched.
- Mixing systems: Don't. Pick one and build your fitting inventory around it. A trailer with both E-Track and X-Track rails creates confusion and means carrying two sets of incompatible hardware.
Installation Tips
Whichever system you choose, installation method matters as much as the hardware itself.
- Always bolt into structural framing. Sheet metal alone cannot handle the shear and pull forces generated under a loaded strap. Find the studs, ribs, or cross-members and bolt through them.
- Horizontal mounting is more versatile. Horizontal rails let you position fittings at any point along the length of the trailer — useful for mixed loads and non-standard cargo dimensions.
- Vertical rails help with tall, narrow loads. Standing equipment, rolled goods, and tall pallets benefit from vertical rails that let you create anchor points at multiple heights on the same load.
- Space rails correctly. For most enclosed trailer applications, rails spaced 24 inches apart give you maximum flexibility while keeping installation cost manageable.
- Use the right fasteners. Grade 5 or Grade 8 bolts with backing plates on the opposite side of the wall. Never rely on self-tapping screws for load-bearing rail installation.
